Mesh Panel Fencing Contractor Basildon, Essex

Collinson Fencing - Mesh Panel Fencing Specialists

Mesh panel fencing is available in many different specifications from V-Mex Boundary Fencing to High Security 358 Mesh Fencing. Collinson Fencing have spent many years supplying and erecting all types of Mesh Panel fencing in various heights for many varied client from London Underground to Schools to a Cricket Club!

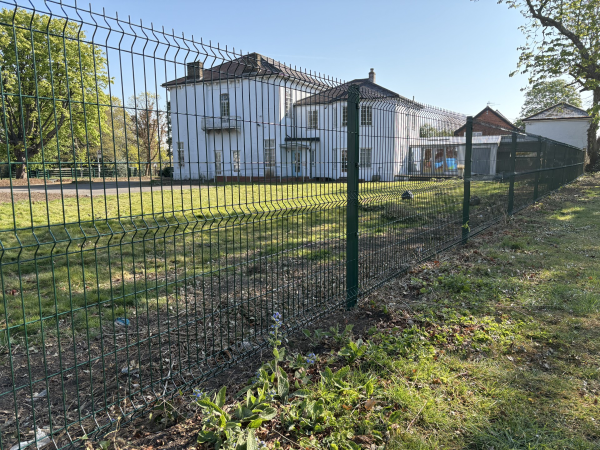

V-Mex Mesh Panel Fencing

V-Mex fencing is toward the lower end of security for mesh panel fencing but by no means easy to breach. Any potential intruder would require determination and industrial tools to get through this fence. Available in various heights and colours V-Mex fencing can be used perfectly around Schools.

V-Mex Fencing can also be referred to as the following: Protek 1000 Fencing, Nylofor 3D Fencing, Masterview Fencing, Jupiter Fencing, VGuard Fencing, Axiom Fencing, Eclipse Fencing, Codi C Fencing, Euroguard Fencing and Paramesh 3M.

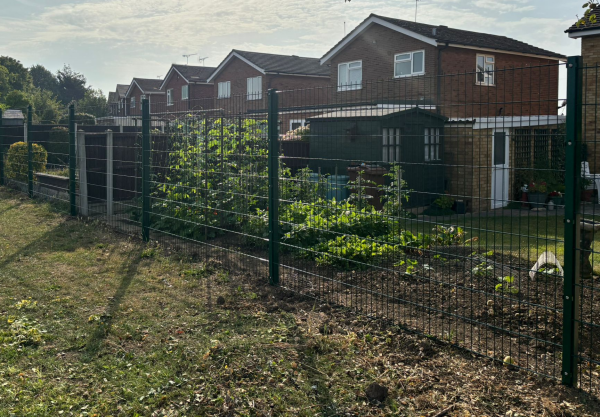

656 Mesh Panel Fencing

656 Mesh Panel Fencing is a medium security rigid mesh panel system. A lighter alternative to 868 Mesh this 656 Mesh is a similar construction but made from two 6mm horizontal wires and one vertical 5mm wire.

656 Mesh Fencing cal also be referred to as the following: Triton, Duo 656, Dulok Lite, Nylofor 2D, Codi M and Euroguard Flatform Medium.

HFS Crimped Advanced Mesh Panel Fencing

HFS Crimped Advanced Mesh Panel Fencing is a new unique fence system supplied and installed by Collinson Fencing. With the posts set at 3.5m centres a saving can be made of up to 30% on installation time and post mix cost. Ideally suited as a boundary fence for Schools, Parks, Solar Farms and Commercial Areas

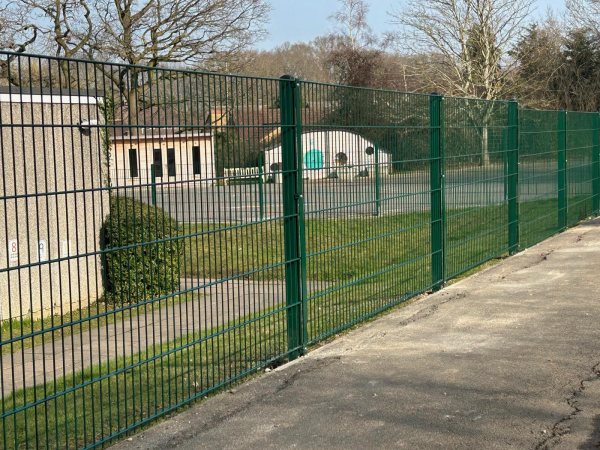

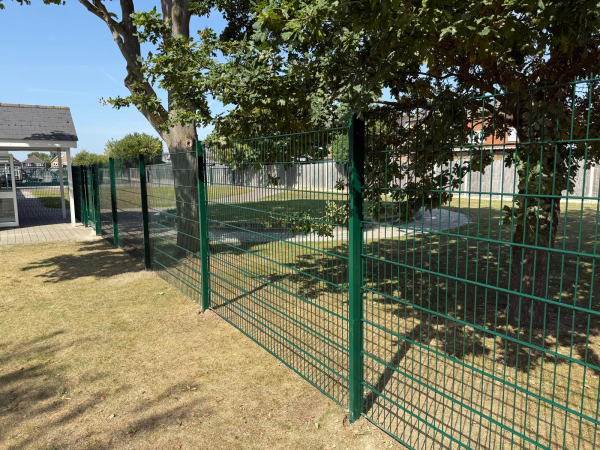

868 Mesh Panel Fencing

For properties requiring more security than V-Mex can offer them we at Collinson Fencing also supply and erect 868 Rigid Mesh Panel fencing shown in the picture above. Ideally suited to industrial areas or commercial properties this Mesh Panel type is also perfect for ball court and tennis court areas due to the strength and rigidity.

868 Mesh Panel Fencing can also be referred to as the following: Pallas, Duo 868, Twin Guard, Duo Perimeter, Dulok, Nylofor 2D Super, Codi H, Euroguard Flatform Heavy, Duex 868 and Paramesh 868.

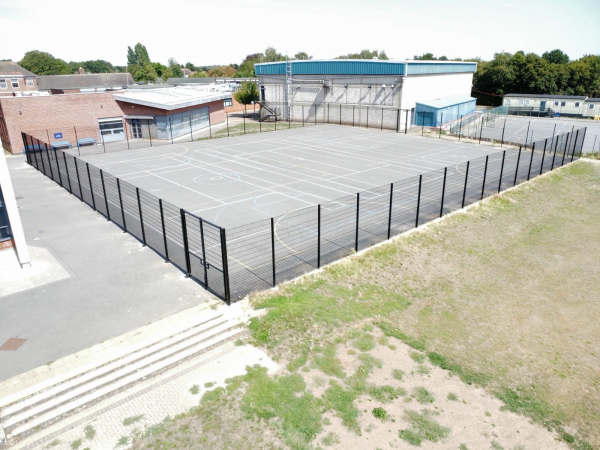

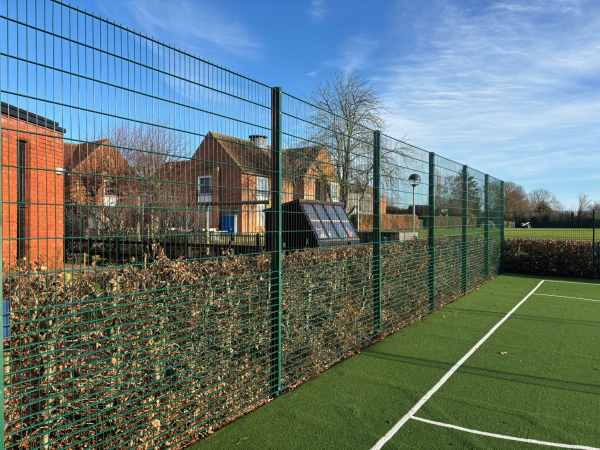

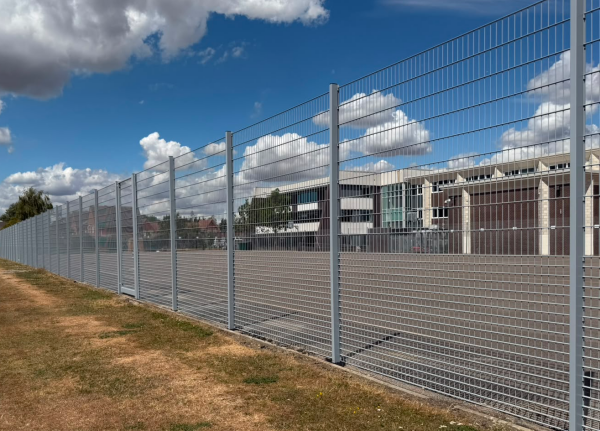

868 Rebound Mesh Panel Fencing

868 Rebound Mesh Panel Fencing is almost exactly the same as 868 Mesh but with added strength for Ballcourts that may be liable to a bit more rigidity such as senior schools or MUGA pitches where adults may play sports.

868 Rebound Mesh Panels have double the amount of horizontal wires at the bottom 1.2m to achieve this strength.

Paladin Fencing

Paladin Fencing is a decorative mesh panel with extra vertical wires and a crimped panel design.

Paladin Fencing can also be referred to as the following: Athena, Multiplus, Zebex, Optima, Codi Z, Proguard and Paramesh Deco.

358 Mesh Panel Fencing

Towards the top end of Mesh Panel Fencing is the 358 Mesh Panel system shown in the top picture on the right. This Mesh is primariy used for High Security Properties such as London Underground Train Depots and Prisons. The cost of 358 mesh has come down in recent years this type of fencing is becoming an option for industrial and commercial properties looking for that bit of extra security. Click on the link to download the 358 Mesh Fencing Specification Sheet

358 Mesh Fencing can also be referred to as the following: Zenith, Securifor, Securus Flat, Hi-Sec, Fortex, Paramesh 358, SecureGuard 358.

Polyester Powder Coated Mesh Panel Fencing

You can, of course, have your new Mesh Panel Fence finished with a polyester powder coated colour of your choice. The standard colours available are:

Green RAL 6005 Black RAL 9005 Blue RAL 5010 White RAL 9010 Red RAL 3020

Obviously you can pick any colour you wish. For more information please visit our RAL Colours Page.

School Fencing

Mesh Panel fencing in all forms is a perfect fence for all areas of a school. Collinson Fencing has supplied and erected Mesh Panel Fencing for Schools all around Essex and London and the Home Counties. Whether it is V-Mex for a boundary fence or internal fence or a new 868 Mesh Ball Court fence we at Collinson Fencing can complete the works from start to finish.

Tennis Court Fencing / Ball Court Fencing / MUGA Fencing

As briefly mentioned above 868 Mesh fencing works absolutely perfectly for tennis court boundaries and ball court boundaries - sometimes known as MUGA (Multi Use Games Areas) pitches. If you have an old chain link boundary to these areas that has stretched and beyond use then a new 868 Mesh fence could be the perfect replacement due to the strength and rigidity.

Please contact us today to arrange for your free, no obligation quotation.


656 Mesh Panel Fencing Coggeshall Essex 868 Mesh Panel Fencing Colchester Essex 868 Mesh Panel Fencing Colchester Essex 656 School Mesh Fencing Roll Top Mesh Fencing Brentwood Essex 868 Mesh Panel Fencing Corringham Essex 656 Mesh Fencing 656 Mesh Fencing West Ham United FC Essex 868 Mesh Fencing 656 Mesh Fencing Chelmsford Essex 868 Mesh Fencing 656 Mesh Fencing 868 Mesh Panel Fencing Basildon Essex 358 Mesh Panel Prison Fencing 868 Mesh Panel Ballcourt Fencing Chigwell Essex 868 Mesh Panel Fencing, Security Fencing Basildon, Essex, Industrial Fencing 358 Mesh Panel Fencing, Security Fencing Basildon, Essex, Industrial Fencing 868 Mesh Panel Fencing, Security Fencing Chelmsford, Essex, Industrial Fencing 358 Mesh Panel Sliding Gate, Security Fencing Chelmsford, Essex, Industrial Fencing V Mex Mesh Panel Fencing, Security Fencing Brentwood, Essex, Industrial Fencing 868 Mesh Panel Fencing, Security Fencing Brentwood, Essex, Industrial Fencing 868 Mesh Fencing V Mex Mesh Fencing

All photos are copyright Collinson Fencing and are of works carried out by Collinson Fencing.
